Part Number:PRO25S

Brand:CTEK

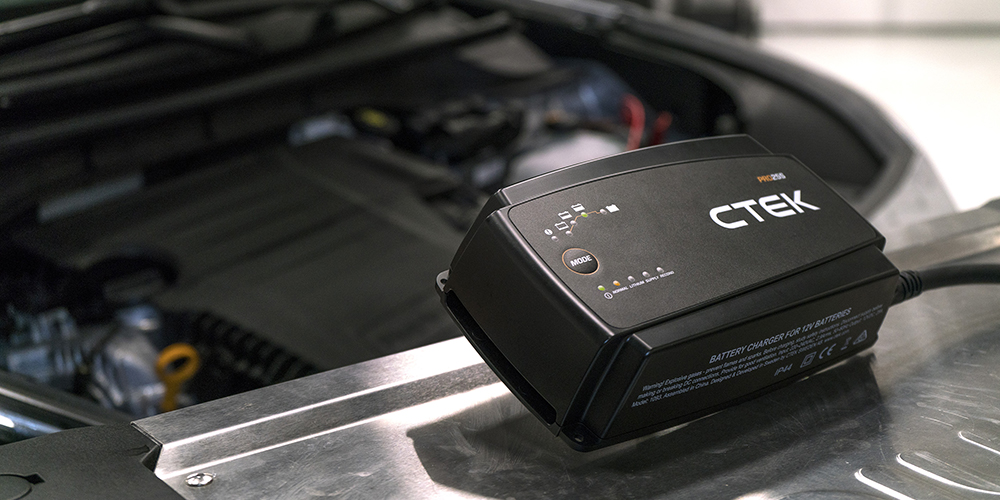

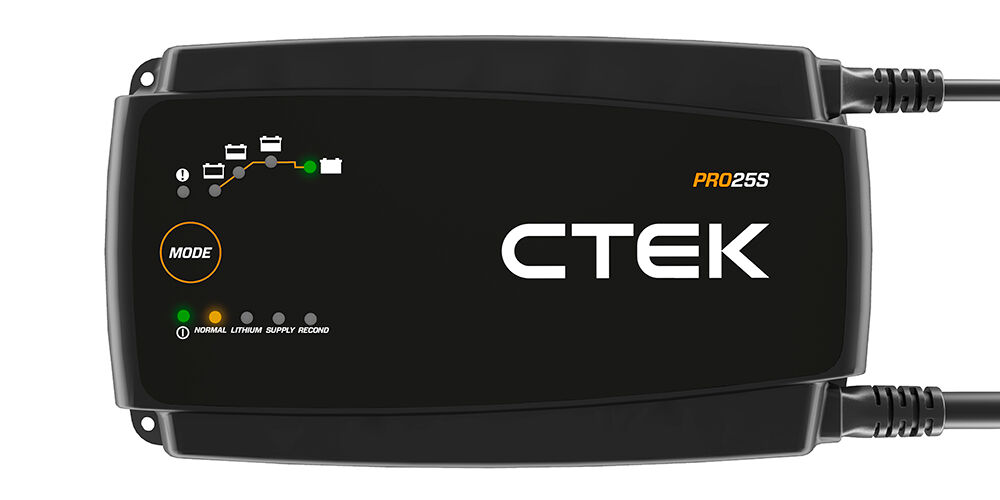

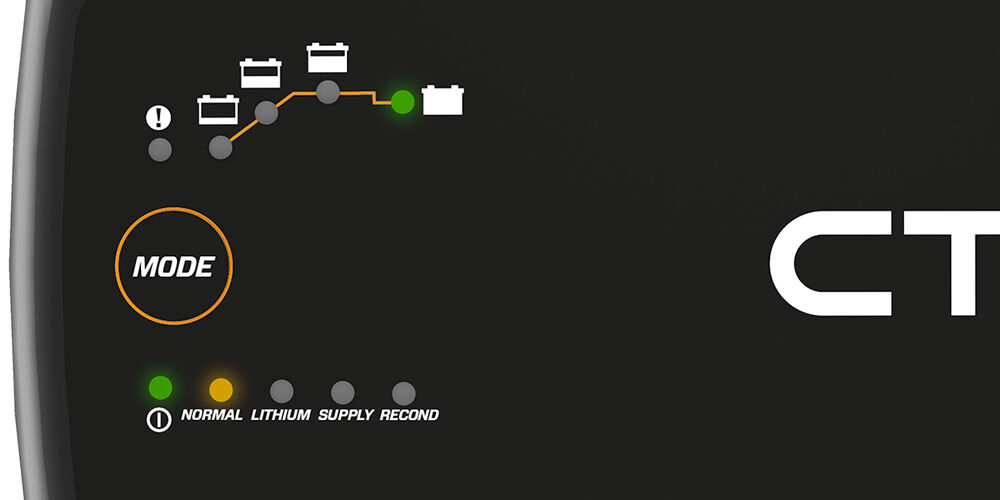

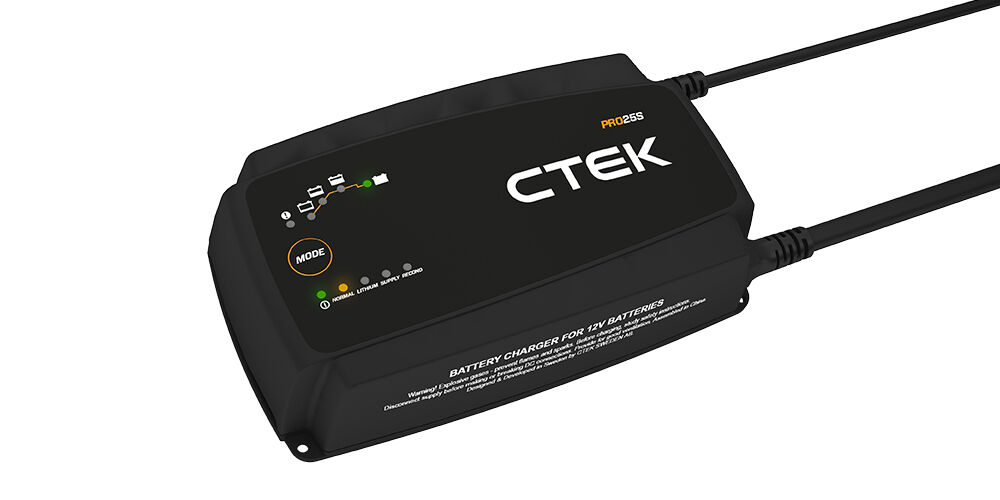

The CTEK PRO25S battery charger and maintainer is a versatile and advanced option for use across a wide range of applications. It features two modes: SUPPLY, which sees the PRO25S function as a secure 12V power source for your vehicle, and RECOND mode, which reconditions and restores depleted batteries.

Fully automatic and simple to use, it can be connected easily and is spark proof and reverse-polarity protected, meaning you and your battery are safe from any potential damage. Its low voltage and current ripple make it safe for use with modern batteries and modern vehicles in which delicate electronic systems exist.

Lightweight & portable, the PRO25S is capable of handling tough environments with its rugged, impact-resistant casing and is suitable for a wide array of potential battery types. The kit includes a 2m extension cable to ensure you have full access wherever you need to supply power.

It’s fully automatic so it’s easy to use and its reliable, 12V power supply keeps the vehicle’s stored data safe and prevents damage to sensitive ECUs and other vehicle electronics. It features fast, 8-step charging, temperature compensation for ambient conditions between -20°C and +50°C (-4°F to +122°F), and is suitable for use with any 12V battery, including lithium*. PRO25S features automatic parallel load compensation so power supply and amperage are always constant and accurate, even if an additional load is placed on the battery during diagnostics. It also has a ‘RECOND’ mode to bring deeply discharged lead-acid batteries back to life and a lithium ‘wake up’ mode for batteries with under voltage protection. *) 12V lithium batteries (LiFePO4, Li-Fe, Li-iron, LFP)


Features

• Up to 25A of battery support

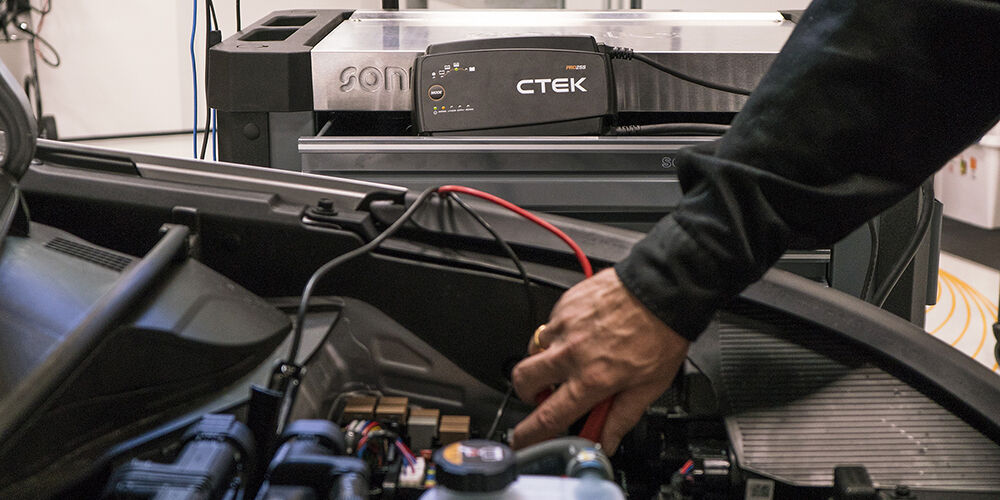

• 12V power supply support for code reading, electrical circuit testing and fault finding
• Fast, fully automatic 8-step charging
• ‘RECOND’ step for to bring deeply discharged lead-acid batteries back to life
• Suitable for 12V lead-acid, WET, Ca/Ca, AGM, MF, GEL and lithium* batteries
• Charger type: 8-step, fully automatic charging cycle
• Work with all 12V battery types, including Lithium* (LiFePO4)
• Battery capacity: 40-500Ah (lead-acid); 30-450 Ah (lithium)
• Low 2V start up voltage for charging
• Extremely low ripple
• Automatic parallel load compensation
• Automatic temperature compensation
• Degree of protection: IP44
• Warranty: 2 years
• Accessories: optional BUMPER 300 silicone protector and WALL HANGER 300 wall mounting kit

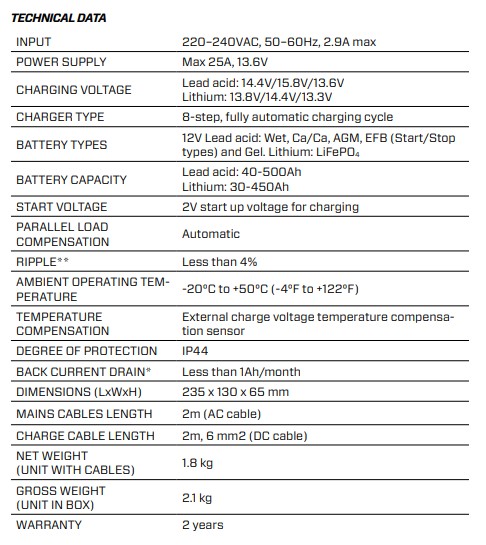

SPECIFICATIONS

• Ambient operating temperature: -20 C to +50 C
• Positioning: Portable (mounting possible), Wallmounting (with special kit)
• Input: 220-240 VAC, 50-60 Hz, 2.9 A
• Output: 14.4/15.8/13.6 V, 25 A, lead-acid battery types. 13.8 V/14.4 V/13.3 V, 25 A, LiFePO .
• Start voltage: 2.0 V
• Back current drain: Corresponding to less than 1 Ah/month
• Battery types: 12 V:, WET, MF, Ca/Ca, AGM, EFB, GEL, LiFePO
• Battery capacity: 40-500 Ah, lead-acid battery types. 30-450 Ah, LiFePO .
• Charging cable length (DC): 2 m
• Net weight (unit with cables): 1.8 kg
• Gross weight (unit in box): 2.2 kg
• Insulation class: IP44
• Ripple: Less than 4 %
