REDARC BCDC1225D DUAL BATTERY ISOLATOR SYSTEM DC TO DC MPPT INSTALL KIT!



REDARC BCDC1225D DUAL BATTERY ISOLATOR SYSTEM DC TO DC MPPT INSTALL KIT!



Prompt Shipping / 3 Years Warranty.







 “ Want To Avoid Paying A Mechanic To Restart Your Car/Truck And Have Power Available For All Your Needs ”





Imagine ... being stuck in the middle of nowhere, your vehicle's or boat's starter battery is flat, the next town is miles away , this is a situation that everyone dreads and no one wants to be in, but fortunately it is one that can be easily avoided.



Here’s the good news...



This REDARC BCDC1225D DUAL BATTERY ISOLATOR SYSTEM DC TO DC MPPT INSTALL KIT!  Can Safely Keep your Battery Powered up !





 redarc bcdc1225d solar input, redarc bcdc1225d, redarc BCDC1225D lithium





As you can imagine ...  with Car, Truck, Caravan, 4x4, Boat Tractor or Camping situation, our power demands have increased a lot from the old days , and whole enjoyment  now more than ever before revolves around powered devices,  so a failure in this area due to low power, can just destroy a holiday completely.





So in my opinion ...  having a power system to back up your whole battery system at all times is paramount.



Works with a wide range of batteries:

Highly efficient and intelligent solar charge controller designed to charge and maintain 12V,24V Sealed, Gel, Lead-acid or LiFeP04 batteries from 12 solar panels.

Able to charge lead acid (sealed, gel or flooded) or lithium battery banks between 9V to 32V.



Charge with solar input anytime:

You can charge your batteries using solar panels when driving or portable panels when stationary.

Uses Maximum Power Point Tracking (MPPT) for maximum efficiency and charge rate and will charge from both solar and the alternator simultaneously. With built in 'Green Power Priority' it will select solar charging first, meaning less load on the alternator.

It features boost, Absorption and float charge stages for rapid, efficient and safe battery charging, with feedback on charge status LED.

Built into a durable case for permanent installation with connection cabling already wired in.



The REDARC BCDC1225D In-vehicle Battery Charger is the next generation in REDARC's DC to DC charging technology, with additional features that make it the most advanced dual battery charger on the market.

 Suitable for 12 or 24 volt vehicle systems, the unit will also work with either standard or variable/smart alternators.

 The BCDC1225D features the same patented charging profiles as it’s predecessor along with a new lithium charging profile making the unit suitable for charging AGM, Gel, Standard Lead Acid, Calcium and LiFePO4 batteries.

 Proven and Tested The award winning technology in the BCDC has been independently verified and tested to ensure battery life is maximised, charging your battery to a proven 100%.

 Trusted for its Australian design and tested for our unique conditions, the DC to DC battery charger will work in the extreme heat of the Simpson Desert, up to 80°C and can handle deep water crossings at Cape York – water, dust and vibration are no match for this charger.

 If you’re heading out into the bush and want to get there and back again safely – you can trust REDARC.









redarc bcdc1225d solar input, redarc bcdc1225d, redarc BCDC1225D lithium

DUAl Inpur 25A In-Vehicle DC Battery Charger



FEATURES



  • Suitable for AGM, GEL, Lead-acid, Calcium and LiFeP04 Batteries.
  •  Advanced MPPT controller to connect many solar panel.
  • Independent DC and Solar charging input.
  • Optimises your batteries performance and life.
  • Suits 12V/24V standards and variable voltage/smart alternators.
  • Multiple load work modes.
  • Extensive electronic protection
  • Backlight LCD Display
  • RS485 communication (for settings or Wifi module)
  • Common negative grounding
  • 4 Charging Profiles












redarc bcdc1225d solar input, redarc bcdc1225d, redarc BCDC1225D lithium
BCDC1225D Front Panel








Specifications:





  •  Compatible Battery Bank Voltages 12/24V DC
  •  Continuous Current rating: 25Amp
  •  Output Power:375w (MAX)
  •  Min. O/P Battery Volts: 0.1V
  •  Weight: 1Kg
  •  Dimensions 165(L) x 120(W) x 37(H)mm
  •  Standards: CE, C-Tick, AS/NZS CISRP11:2004





CHARGING SPECS:



  •  GEL /AGM BATTERIES 14.6v (max) 13.3v (float)
  •  STANDARD LEAD ACID BATTERIES = 15.0v (max) 13.3v (float)
  •  CALCIUM TYPE BATTERIES= 15.1v (max) 13.3v (float)
  •  LITHIUM TYPE BATTERIES= 14.6v (max) ggg









PACKAGE INCLUDES
  • Newest version 100% Genuine REDARC 1225D

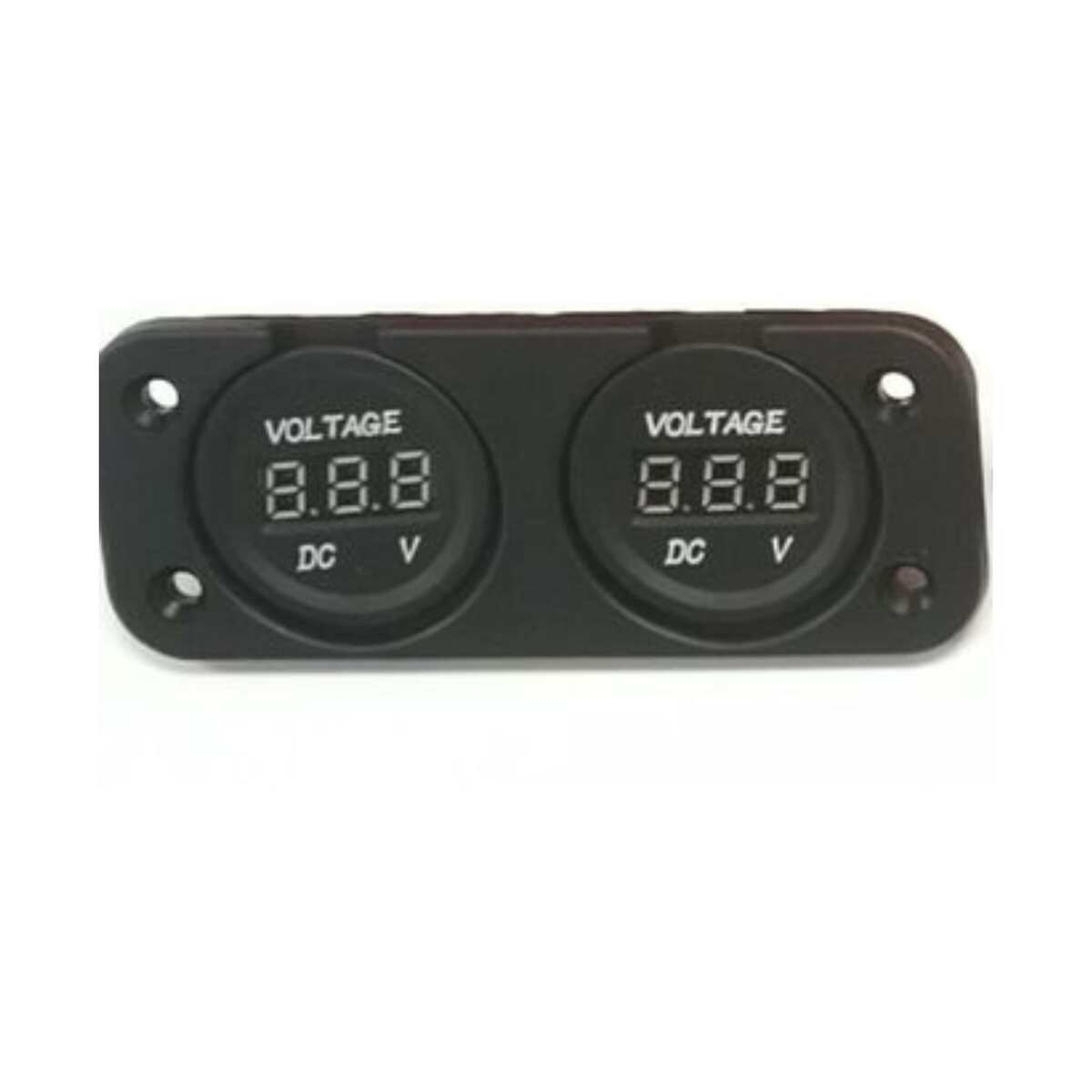

  •  1 x Double Volt Gauge (RED & GREEN) &4 x Mounting Screws & 4 x Blue Spade Terminals
  •  2 x MIDI 40A Fuse with Holder Kits
  •  2m 6B&S 135amp single core negative cable (black)
  •  5m 6B&S 135amp single core positive cable(red)
  •  Double Volt Gauge (Red & GREEN
  •  Great for your Dual Battery setup
  •  Can move the gauges into a vertical position or horizontal position
  •  Range - 0 - 30 Volts
  •  Flush mountable for easy installation

redarc bcdc1225d solar input, redarc bcdc1225d, redarc BCDC1225D lithium            redarc bcdc1225d solar input, redarc bcdc1225d, redarc BCDC1225D lithium               redarc bcdc1225d solar input, redarc bcdc1225d, redarc BCDC1225D lithium redarc bcdc1225d solar input, redarc bcdc1225d, redarc BCDC1225D lithium





What is Green Power Priority? Green Power Priority is used to describe the priority given to a solar input when charging an auxiliary battery in your vehicle.
For example, if a solar power input is available the maximum available solar power will be used before topping up the output charge current from another power source. Priority is given to the solar input then to AC Mains power (where applicable), then to DC Vehicle Power, the advantage of this is that it places less load on the alternator.

 The new BCDC1225D combines the Standard and Low voltage functions in the one unit. When the blue wire is connected to positive the unit will operate in Low Voltage (LV) mode and leaving the blue wire disconnected will allow the unit to operate as a standard BCDC.








                                *  The Warranty  * 3 Years coverage
  mppt 20a solar charge controller, mppt charge controller, lithium solar charge controller
 Call us

- After-Sales Services   - Money Back Guarantee
- Genuine Australian Seller   - Australian Distribution



So Why Wait For An Emergency ? Get a Compact Jump Starter Now!










And remember you risk nothing by saying yes right now. In the unlikely event you are not 100% thrilled and absolutely delighted with your purchase, you will get a prompt and courteous refund on your investment. So if you are not completely happy for whatever reasons simply contact us and we will rush a full no hassle refund .





Welcome to JRAutoFix Ebay Power Seller Online!



BUY WITH CONFIDENCE !!





FREE Next Day Despatch Australia Wide!!
Fully Insured AU POST With Tracking Number.







Thanks very much for checking out our items & happy shopping!



(JRBCDC1225DK)

SKU JRBCDC1225DK
Barcode # 9338628003129
Brand REDARC
Shipping Weight 1.5000kg
Shipping Width 0.280m
Shipping Height 0.150m
Shipping Length 0.180m
Shipping Cubic 0.007560000m3
