6 Way Blade Fuse Box Block Holder LED Indicator Light Kit for 12V 24V Car Marine, Caravan, 4wd



6 Way Blade Fuse Box Block Holder LED Indicator Light Kit for 12V 24V Car Marine, Caravan, 4wd





New! 6 Way Blade Fuse Box Block Holder LED Indicator Light Kit for 12V 24V Car Marine, Caravan, 4wd





" Want To Safely More Equipment To Your Vehicle Without Overloading Your Existing System and Create some Serious Damage ..."




 Imagine ... Overloading your electrical harness with the risk of causing fire! but fortunately it is one that can be easily avoided.



Here’s the good news...



The 6 Way Blade Fuse Box Block Holder with LED Indicator Light Kit for 12V 24V Car Marine, Caravan, 4wd

Can Safely Allow You To Add more Electric Equipment To Your Vehicle.





6 Way Blade Fuse Box Block Holder LED Indicator Light Kit for 12V 24V





Fuse block







As you can imagine ...  when spending time on the road everyday you want to have your electrical sorted for your equipment and avoid massive disaster.



So in my opinion ...  having a Safe wiring system for your vehicle is paramount.





It provide distribution for the negative wires.

This versatile fuse block provides fused distribution of your positive terminals, as well as distribution for the negative wires. This is especially handy in a boat or caravan which may not have a chassis-ground type system.

Each fuse output accepts up to a 30A, up to 100A combined, with handy fuse-blown indication. Fuses not included, uses standard automotive fuses.

These fuse boxes are suitable for use in automotive and marine applications - each fuse holder is numbered to make fuse installation and identification as easy as possible



On the fuse box is a red LED which illuminates when a fuse has blown, an earth is not required for this the fuse boxes illuminate when they detect a short circuit. This makes it easy to identify blown fuses and makes for easier problem solving

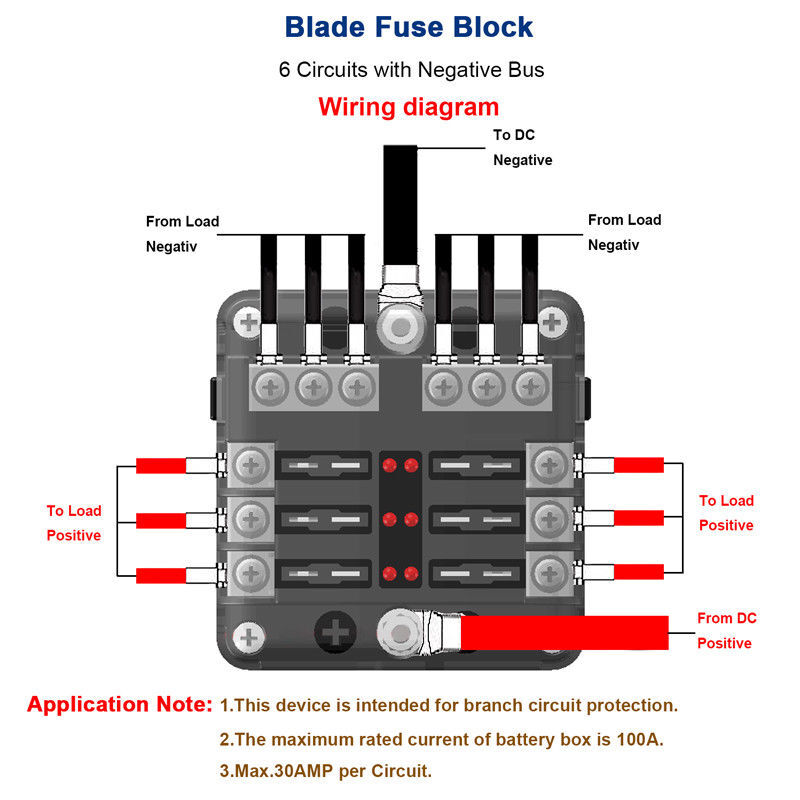

Fuse Box Wiring:

Connect a single power lead to the positive post on the fuse box. When fuses are fitted power is supplied out of the circuit via the spade terminal. No earth is required




Connect Safely !!





Fuse block







Features :



- Up to 30A per output

- Red LED blown fuse indication

- Negative bus bar





Fuse Block






Specifications

  • Main Line: Terminal Rating: M5 Threaded Studs (32VDC, 100A Max.) Wire Size: #4-6 AWG
  • Single Line: Terminal Rating: M4 Threaded Studs (32VDC, 30A Max.)
  • Wire Size: #12-16 AWG
  • Terminals: Nickel Plated Copper
  • Screws: Stainless Steel
  • Specifications Fuse Type :Blade 6.3 mm
  • Dimensions: Width : 85.0mm Height : 88.0mm Depth : 37.0mm
  • Weight : 160.0g



What is include:

  • 1 x 6 way fuse box
  • Transparent High Quality Plastic Cover
  • 4 Screws
  • BONUS Set of Fuses with Tool for fuse extraction







So Why Take The Risk of a Fine? Get a Fuse Block for your vehicle Now!





And receive A FREE Bonus : A Set of Fuses with an extractor tool.







Fuse block







And remember you risk nothing by saying yes right now. In the unlikely event you are not 100% thrilled and absolutely delighted with your purchase, you will get a prompt and courteous refund on your investment. So if you are not completely happy for whatever reasons simply contact us and we will rush a full no hassle refund .



Welcome to JRAutoFix Ebay Online!



BUY WITH CONFIDENCE !!





FREE Next Day Despatch Australia Wide!!
Fully Insured With Tracking Number.



We sell a wide range of automotive



Want multiple items? Combine postage & save!!







Thanks very much for checking out our items & happy shopping!



From the team at JRAutofix.








JRAutofix



P.S. If you're serious about putting an end to feeling Frustrated, Unwanted and Annoyed about Missing out on things... PLUS, if you're committed and excited about powering up your car, equipment and Keep your car or equipment going... then the smartest decision you could do is to take action right now while it's at this lowest price ever.



Shipping Options

  • Please note that business days do not include weekends or Victorian public holidays.
  • Shipping & handling charges are part of the sale. If you do not agree with the charges, please do not bid on this item.

Pickups:

  • Pickups are not available under any circumstances.



Free Shipping Fully insured

JRAutofix





Payment instructions



JRAutofix

Paypal : We accept payment through paypal .



Internet Banking Transfer : We accept payments made via Internet banking from Australian Banks.



Bid Now To Grab A Bargain!

If we have not heard from you within 7 days from the invoice date, we reserve the right to relist the item and file a dispute. If your payment is received after we have relisted the item, we will deduct our listing fees before returning your payment to you. Obviously we prefer to avoid unnecessary disputes so please contact us if you need to extend the payment time.




JRAutofix





Why buy from us?

• JRAutofix is a Registered Australian Business, we source and buy products in bulk from factories around the world and sell it to our customers directly. We have been operating since 2012 and have been providing our customers with outstanding quality products with unbeatable prices
• Great customer service is our priority and we strive to deliver the best to our customers - take a look at our feedback for confirmation
• Our Australian Business Registration Number ABN 98 135
• We offer 12 months warranty, for your peace of mind • We offer phone and email supports for all your technical needs
• No hidden customs duties and taxes upon importation ( for Australia sales only) • All prices are GST inclusive ( for Australia sales only)
• All stocks are held in Melbourne, so buying from us is generally faster, cheaper and safer than purchasing similar items from overseas sellers
• We constantly improve our product quality by working together with the manufacturer in research and development

Terms and conditions

We have made every effort to fully describe our products and explain our terms as clearly and succinctly as possible. Please ensure that you have read and understood the entire listing, including these terms and conditions, and have agreed to pay the costs involved (including shipping charges) before you place a bid or purchase this item. If you have any question, please contact us before bidding or purchasing this product.
1. Prior to installing/reinstalling the units, we strongly advise you to bench-test the unit first or to test the unit before completely installing it into the vehicle to ensure the unit is working as expected as to avoid wasting any time or money.
2. Orders are delivered by Australia Post.
3. Your order will be dispatched from our warehouse in Melbourne, Australia within 24 business hours after the payment was clear.
4. We do not offer warranty claim for products fall outside of warranty scope. Please refer to our warranty section for more information.
5. If you have any concerns with or do not understand our Terms and Conditions, we encourage you to contact us and we will make address your concerns within 24 business hours.
6. Unless otherwise stated, prices in our website are in Australian dollars. Prices are subject to change without prior notice.

It is important for you to understand these terms and conditions before you make any purchases. By making any purchase, you accept these terms and conditions and accept that these terms and conditions (above) remain in force above and beyond any guarantee(s) provided by any other third party. If you do not agree with the above terms and conditions, please do not purchase this item.

Warranty

* This product comes with 12 months warranty. If the product is faulty, simply send the item back to us and we will send it to the manufacturer for repair on your behalf.
* Please note: the warranty does not cover deliberate physical damage, severe moisture or electrocution due to static short circuit, inserting into damaged equipment etc.
* In addition, we also guarantee all of our products to be working when you receive them, unless otherwise stated. Your satisfaction is important to us, so if your product is DOA (Dead On Arrival), let us know, and return it to us within 30 days of the date of purchase. We will send a replacement to you as soon as we receive your returned item (Costs associated with returning the items are not refundable. We will pay costs incurred in sending the replacement).
* Provide us a photo/image of the product and email with a description of the issue.
* Please note that items are not tested prior to sending unless requested by you. Despite our efforts to ensure the manufacturer produces products of a consistently high standard, faults can sometimes occur.
* All accessories are not covered by warranty such as the wiring harness, extended wires etc.
* Warranty will be void if products are misused, mishandled or modified in any way.
* Restocking fees maybe incurred in cases of refunds due to change of mind. For International buyers only
* Import duties, taxes and charges are not included in the item price or shipping cost. These charges are the buyer's responsibility. * Please check with your country's custom office to determine what these additional costs will be prior to bidding or buying.
* Processing and Handling charges on return items are buyer's responsibility. Refund will be issued as soon as is reasonably practicable and the customer will be provided with an e-mail notification. Refund only applies to the cost of the item

Disclaimer

If you are pleased with your purchase, please share your experience with other buyers and leave us positive feedback. If you are dissatisfied with your purchase in any way, please talk to us first!
We are happy to help you solve any problem and if the situation calls for it, we will provide refunds or replacements.
We try to help our customers rectify any problem within reasonable limits.
Depending on the situation, we may still entertain warranty requests even after the warranty period has expired. However, we are under no obligation to do so on a regular basis.





































































JRautofix Copyright

(SZ2031)

SKU SZ2031
Brand Powertech
Shipping Width 0.060m
Shipping Height 0.050m
Shipping Length 0.080m
Shipping Cubic 0.000240000m3
