10 Way Blade Fuse Box Block Holder LED Indicator Light Kit for 12V 24V Car Marine, Caravan, 4wd...



New! 10 Way Blade Fuse Box Block Holder LED Indicator Light Kit for 12V 24V Car Marine, Caravan, 4wd...



" Want To Safely More Equipment To Your Vehicle Without Overloading Your Existing System and Create some Serious Damage ..."


 Imagine ... Overloading your electrical harness with the risk of causing fire! but fortunately it is one that can be easily avoided.


Here’s the good news...


The 10 Way Blade Fuse Box Block Holder with LED Indicator Light Kit for 12V 24V Car Marine, Caravan, 4wd

Can Safely Allow You To Add more Electric Equipment To Your Vehicle.



10 Way Blade Fuse Box Block Holder LED Indicator Light Kit for 12V 24V



Fuse block


As you can imagine ...  when spending time on the road everyday you want to have your electrical sorted for your equipment and avoid massive disaster.


So in my opinion ...  having a Safe wiring system for your vehicle is paramount.



Easy to wires.

This fuse block provides fused distribution of your positive terminals. This is especially handy in a boat or caravan which have a chassis-ground type system.

Each fuse output accepts up to a 30A, up to 100A combined, with handy fuse-blown indication. Fuses included, uses standard automotive fuses.

These fuse boxes are suitable for use in automotive and marine applications - each fuse holder is numbered to make fuse installation and identification as easy as possible


On the fuse box is a red LED which illuminates when a fuse has blown, an earth is not required for this the fuse boxes illuminate when they detect a short circuit.

This makes it easy to identify blown fuses and makes for easier problem solving

Fuse Box Wiring:

Connect a single power lead to the positive post on the fuse box. When fuses are fitted power is supplied out of the circuit via the spade terminal. No earth is required

Connect Safely !!



10 way fuse block
10 way fuse block




Features :

- Red LED blown fuse indication

- Input Terminal Rating: 32VDC @ 100A Max.egative bus bar

- Input Wire Size: 4-6 AWG

- Output Terminal Rating: 30A Max. per Circuit

- Output Wire Size: 12-16 AWG

- Fuse: Automotive Blade up to 30A



Fuse Block



  • Main Line: Terminal Rating: M5 Threaded Studs (32VDC, 100A Max.) Wire Size: #4-6 AWG
  • Single Line: Terminal Rating: M4 Threaded Studs (32VDC, 30A Max.)
  • Wire Size: #12-16 AWG
  • Terminals: Nickel Plated Copper
  • Screws: Stainless Steel
  • Specifications Fuse Type :Blade 6.3 mm

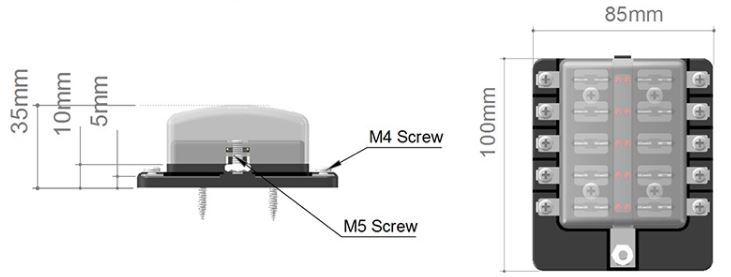

  • Dimensions: Width : 85.0mm Height : 100.0mm Depth : 37.0mm
  • Weight : 116.0g


Fuse Block


What is include:

  • 1 x 10 way fuse box
  • Transparent High Quality Plastic Cover
  • 4 Screws
  • BONUS Set of Fuses with Tool for fuse extraction
Fuse Block




So Why Take The Risk of a Fine? Get a Fuse Block for your vehicle Now!



And receive A FREE Bonus : A Set of Fuses with an extractor tool.




Fuse block

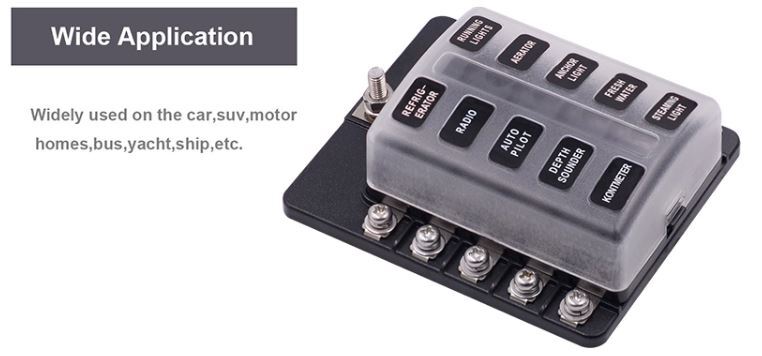

 Applications/ Usage



Fuse block
Fuse block


And remember you risk nothing by saying yes right now. In the unlikely event you are not 100% thrilled and absolutely delighted with your purchase, you will get a prompt and courteous refund on your investment. So if you are not completely happy for whatever reasons simply contact us and we will rush a full no hassle refund .
