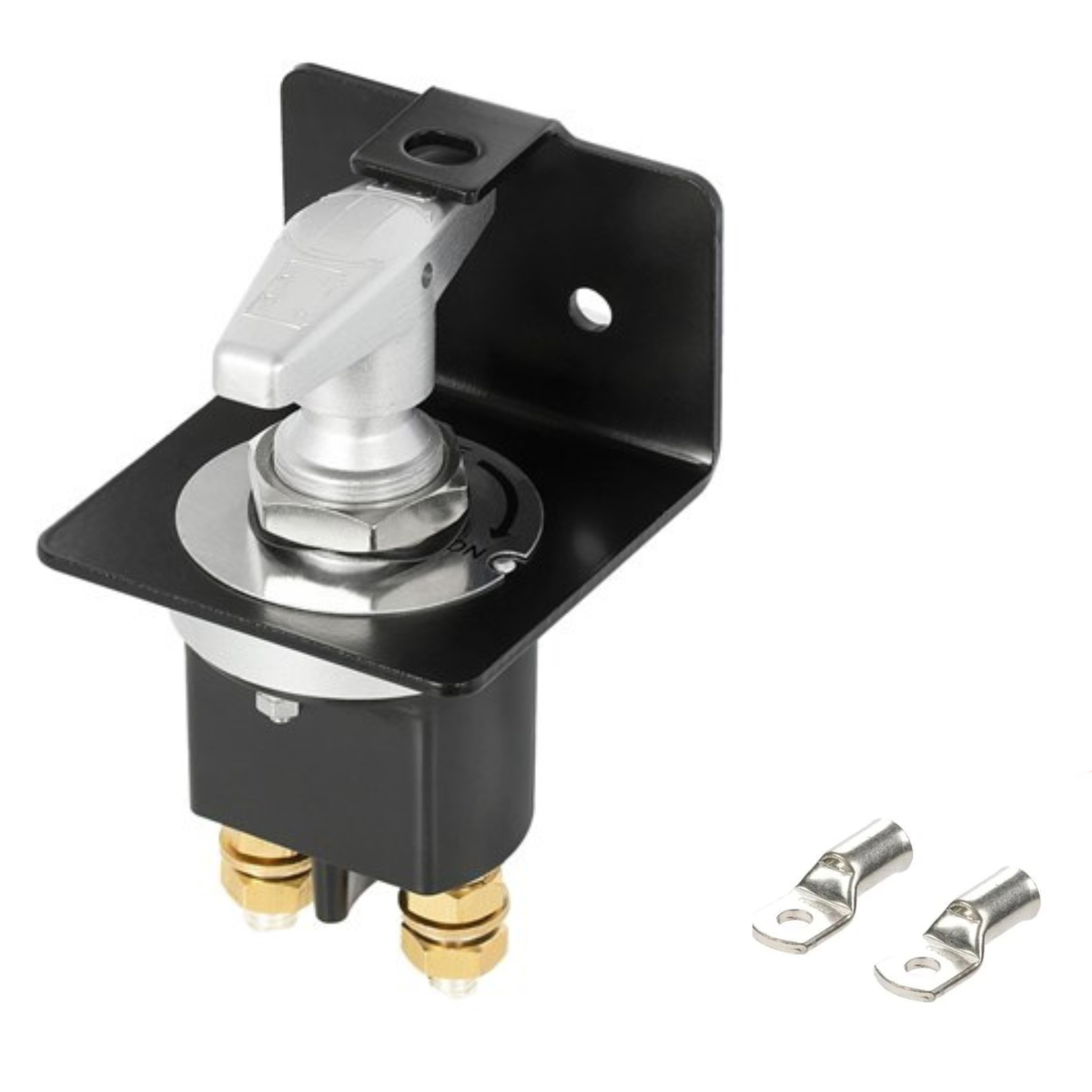

High Current Battery Isolator Switch 500Amp Lockout Plate 12V 24V

This heavy-duty battery disconnect switch is designed for high-current applications. Rated at 500A continuous, it’s built to handle the demands of various vehicles and electrical systems. Features a built-in lockout plate, which allows you to securely lock the switch in the off position, preventing accidental activation and enhancing safety during maintenance or storage.

Features:

  • Easy installation and operation
  • Durable and weatherproof construction
  • Secure lockout feature for added safety
  • 68mm diameter round section behind plate
  • Requires 90mm clearance behind mounting plate
  • Plate is 90mm wide, 85mm high, 65mm deep
  • Mounting holes in plate are 8mm diameter


SPECIFICATIONS:
Continuous Rating: 500A
Cranking Current: 5000A
Voltage Rating: 12-32VDC
Stud size: M10
Dimensions: 89.2 x 64.3 x 89.37mm
Weight: 490g

Specifications

Contains Button Cell : false
Length : 89.2mm
Width : 64.3mm
Height : 89.7mm
Weight : 0.49kg
Packaged Volume : 1.38l
Packaged Weight : 0.58kg
Packaged Length : 10cm
Packaged Width : 14.67cm
Packaged Height : 9.4cm

(292)

SKU 292
Shipping Weight 0.5000kg
Shipping Width 0.150m
Shipping Height 0.080m
Shipping Length 0.080m
Shipping Cubic 0.000960000m3
